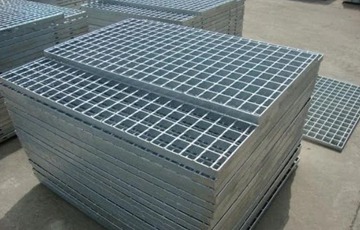

ELECTRO FORGED STEEL GRATING

Crossroads Services Co. LLC supplies high-quality Electro-Forged Gratings that meet the demands of various industrial and architectural applications. These gratings are manufactured using a resistance-welding process, ensuring a rigid finish suitable for diverse environments. The bearing bars are resistance-welded at the contact points with crossbars under high heat and pressure, creating a durable joint. The crossbars provide excellent rigidity while maintaining a smooth surface for safe and comfortable walking.

Electro-Forged Gratings are widely preferred due to their strength, durability, cost-effectiveness, and ease of installation. They are commonly used in industrial plants, architectural buildings, pedestrian walkways, platforms, safety barriers, drainage covers, and ventilation grates.

Specifications:

Load Bar Depth: 25mm - 125mm

Load Bar Thickness: 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm & 10mm

Load Bar Type: Plain or serrated

Cross Bar Size: Twisted square bar 6mm, 8mm & 10mm

Pitch/Mesh: 30x100mm, 30x50mm, 41x100mm, 41x50mm, 34x38mm, 35x75mm & 35x100mm

Finish: Black self-colour / Painted / Hot Dip Galvanized

Standard Grating Panels

Crossroads Services Co. LLC maintains access to a vast range of standard grating panels, available for immediate supply in plain or serrated finishes.

Finishes Offered:

  • Mild Steel (Self Colour)
  • Mild Steel with Hot Dip Galvanized
  • Mild Steel with Painted

Customized Solutions

We facilitate access to tailored solutions designed to meet specific requirements. Whether it’s a small trench area or a large, complex structure, our gratings are customizable to fit applications involving cut-outs, toe plates, and other design features for safe access.

Our electro-forged gratings conform to the standards and specifications outlined by the National Association of Architectural Metal Manufacturers (NAAMM).

Stair Treads

Crossroads Services Co. LLC can provide stair treads in various specifications and sizes to meet your needs. Options include pyramid-type nosing or checkered plate nosing to enhance safety.

Trench Grates and Embedded Angles

We supply trench grating customized with embedded angle frames and pour frames, ideal for concrete access applications.
